Plate Heat Exchangers

Plate Heat Exchangers

Plate Heat Exchangers

10/09/18

“What is a more efficient heat exchanger design?”

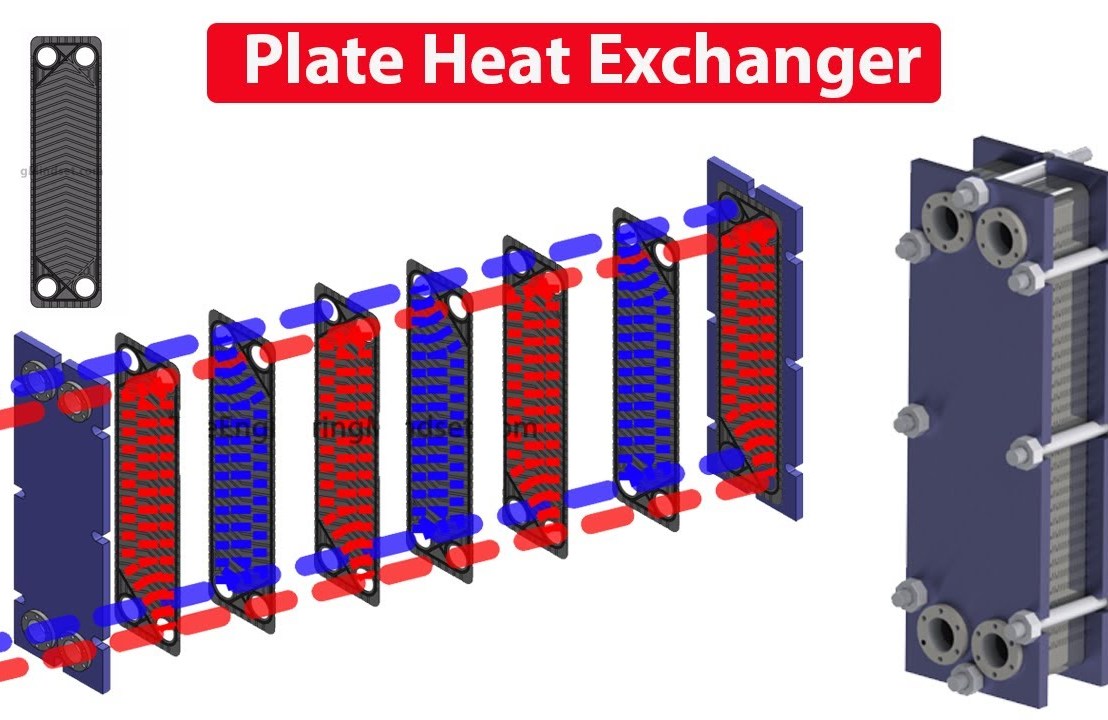

Heat exchangers come in all shapes and sizes. But how could we make a more efficient design? Well, what if we were to have a series of long metal plates with holes on their four corners, with one pipe carrying a hot fluid moving through one and another one carrying cold fluid moving through the other. Let’s allow for the heat to transfer between these two plates also. By allowing this to occur, we can warm up one fluid while cooling the other one very efficiently. These are known as Plate Heat Exchangers and are commonly applied in building HVAC.



Image credit youtube.
